AAMA 501.1 Construction Materials Testing Equipment Dynamic Water Penetration Test

Name: AAMA 5011 Construction Materials Testing Equipment Dynamic Water Penetration Test
Brand: DAXIAN
Price: 1 USD

AAMA 501.1 Construction Materials Testing Equipment Dynamic Water Penetration Test Manufactures

Brand Name : DAXIAN

Model Number : DX8684

Certification : AAMA 501.1

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash

Supply Ability : 30 sets per month

Delivery Time : 45 work days

Packaging Details : Standard export wooden case

Name : AAMA 501.1 Building External Windows And Doors Dynamic Water Penetration Testing Equipment ENV13050

Standards : AAMA 501.1

Power : AC380V, 3KW

Use space : 3000×3000×10000mm

Warranty : 12 months

Contact Now

AAMA 501.1 Dynamic Water Penetration Test for Machine Building External Windows And Doors

AAMA 501.1 Construction Materials Testing Equipment Dynamic Water Penetration Test

【Test items】

This test method determines the equipment and procedures for detecting the water permeability of external windows, curtain walls and doors with dynamic pressure.

【Standard】:

- AAMA501

- ENV13050

- ASTME331

【Features】

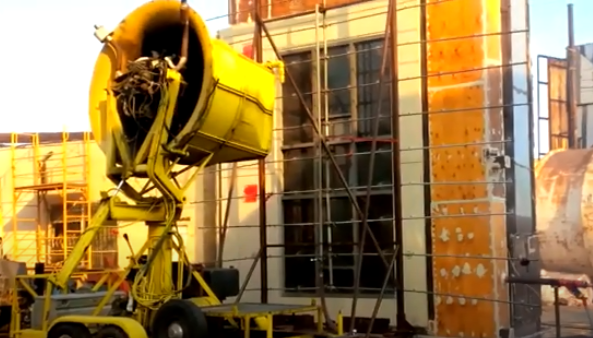

-Dynamic watertight performance of building curtain wall The axial flow fan detects that the axis of the airflow from the duct is horizontal and orthogonal to the outer surface of the sample.
-The fan is fixed on a frame device that can move the fan at a set speed in both vertical and horizontal directions to blow the controlled airflow to all places on the outer surface of the sample.
-The spray device sprays the specified amount of water evenly on the outdoor surface of the test piece, the nozzles are arranged uniformly, the spray volume of the device can be adjusted, and measures are taken to ensure the uniformity of the spray volume, which can be on the outer surface of the test piece A continuous and constant water film is formed on the surface.

Technical parameters:

Working environment:	normal temperature and humidity
Temporary load rate	25%
Maximum wind speed	35m/s
The total weight of the unit	2800kg
Power	250kw
Power supply	AC three-phase 380v
Equipment area	3000×3000×10000mm
Power	AC380V, 3KW
