ASTM D2303 Electrical Insulating Materials Evaluating Resistance To Tracking And Erosion Testing Equipment IEC60587

Name: ASTM D2303 Electrical Insulating Materials Evaluating Resistance To Tracking And Erosion Testing Equipment IEC60587
Brand: Daxian
Price: 1 USD

ASTM D2303 Electrical Insulating Materials Evaluating Resistance To Tracking And Erosion Testing Equipment IEC60587 Manufactures

Brand Name : Daxian

Model Number : DX8427

Certification : ASTM D2303，IEC60587-2007

Place of Origin : China

MOQ : One set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5 sets per month

Delivery Time : 5-8 work days

Packaging Details : Wooden case

Usage : Rubber Plastic Tester

Name : Tracking And Erosion Testing Equipment

Standards : IEC60587-2007, ASTM D2303

Test Voltage : 100~6000V Adjustable

Warranty : 12 Months

Drop size : 44 to 50 drops / cm3

Contact Now

IEC60587 6 KV Automatic High Voltage Tracking Index Tester

Technical Description:

High Voltage tracking tester suit for electronic products, household appliances and other materials resistance to tracking and erosion test, simulate the frequency (48HZ-62HZ) or a corresponding DC Voltage, liquid contaminants and ramps samples by electrical resistance to tracking and erosion measurements assessed under severe environmental conditions of electrical insulating materials resistance to tracking and erosion levels.

Standard:
IEC60587-2007, ASTM D2303.

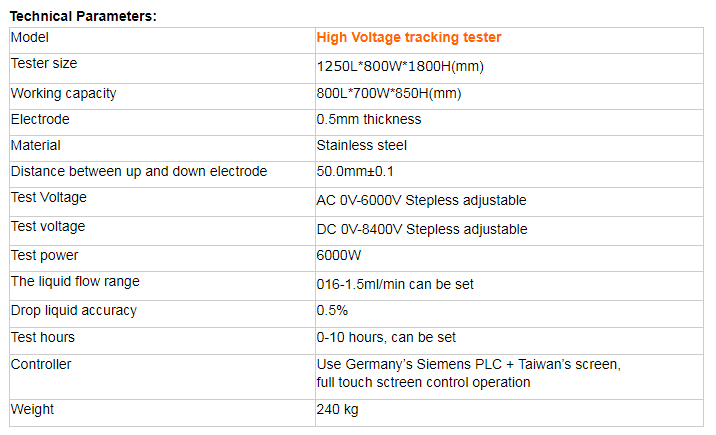

Parameters:

Box	≥ 0.5 cubic meters
Drop size	44 to 50 drops / cm3
Power supply	AC 220V, 50Hz
Electrical load	100 ~ 6000V adjustable
Drip height	30mm ~ 40mm adjustable
Electrode Pressure	1.00N±0.05N
Flow range	0.00185 to 2 ml / min
Working speed	0.1 to 15 rev / min

ASTM D2303 Electrical Insulating Materials Evaluating Resistance To Tracking And Erosion Testing Equipment IEC60587
