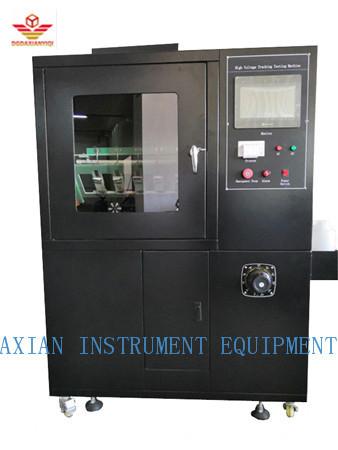

IEC 60587 Automatic Erosion Testing Machine Stainless Steel Tracking

Brand Name : Daxian

Model Number : DX8427

Certification : IEC60587, ASTMD2303

Place of Origin : China

MOQ : One set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 sets per month

Delivery Time : 5-8 work days

Packaging Details : Wooden case

Product name : Tracking Testing Equipment

Model No. : DX8427

Standard : IEC60587, ASTMD2303

Test voltage : 100V-6000V stepless adjustable

Output voltage : AC / DC (switchable)

Test time : 6 hours

Test groups : 5 proups

Warranty : 12 months

Contact Now

IEC 60587 Automatic Stainless Steel High Voltage Tracking Testing Machine / Test Equipment

DX8427 Electrical Insulating Materials Tracking An...

Tracking Test:

Inclined-plane Tracking Test;
A laboratory test for tracking and erosion resistance of HV outdoor insulation;
High voltage inclined-plane tracking test for electric vehicles;
Insulating performance evaluation-Tracking resistance and Erosion resistance test;

Introduce:

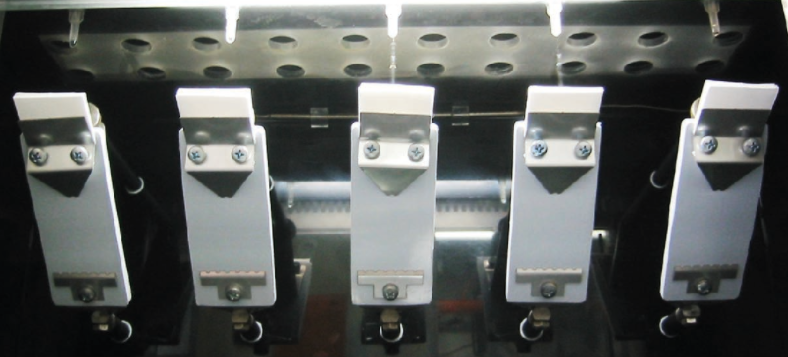

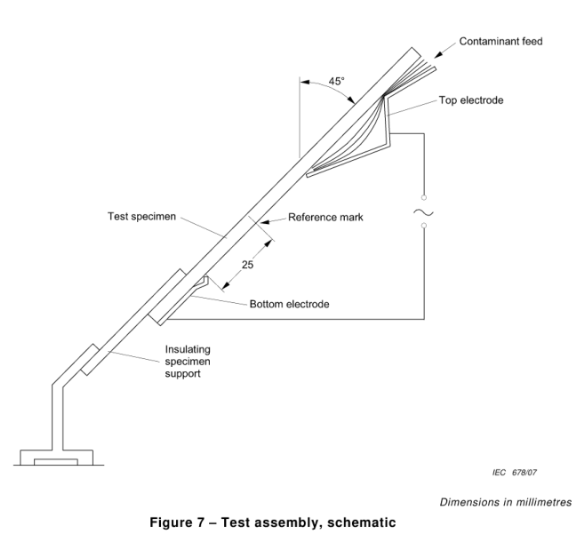

The tracking performance of insulating polymer materials for outdoor use is tested according to IEC60587 or JIS C2136 "Test methods for evaluating tracking and erosion performance under severe environmental conditions". The sample is inclined at 45 degrees, the upper and lower electrodes are connected, the electrodes are energized according to the specified voltage, and the electrolyte flows from the upper electrode to the lower electrode. Tracking starts at the bottom, and the time for the tracking to go up 20 mm from the bottom electrode is measured. This is how tracking performance (carbonization) and erosion resistance (erosion) properties are confirmed.

Standards:

IEC60587, ASTMD2303.

Technical parameters:

Model No. DX8427

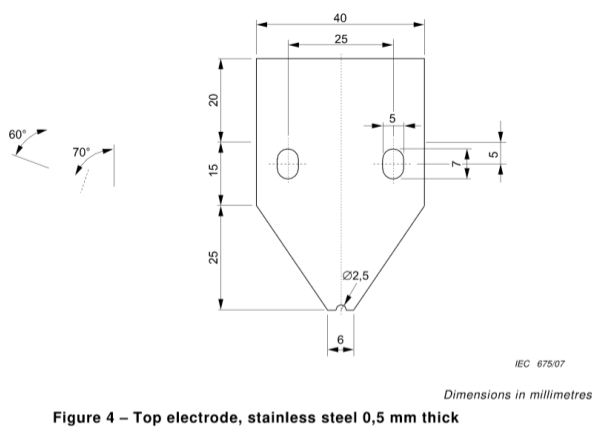

Electrode thickness 0.5mm Material: stainless steel;
Test voltage 100V-6000V steplessly adjustable
Test time 6 hours
Dropping accuracy 0.5%
Output voltage AC/DC (switchable)
Number of experimental groups five groups
The volume of the studio 900L*650W*950H(mm); the volume is 0.56m3
Dimensions of the instrument 1300L*700W*1800H(mm)

IEC 60587 Automatic Erosion Testing Machine Stainless Steel TrackingIEC 60587 Automatic Erosion Testing Machine Stainless Steel Tracking

IEC 60587 Automatic Erosion Testing Machine Stainless Steel Tracking

IEC 60587 Automatic Erosion Testing Machine Stainless Steel Tracking

IEC 60587 Automatic Erosion Testing Machine Stainless Steel Tracking

Welcome to visit our factory for sightseeing!

Supplier Company Name Daxian Instrument Equipment CO.,Limited
Company Address Changlian Industrial Building, 168 Zhenan West Road, Xiabian Community, Chang'an Town, Dongguan, Guang Dong, China
Contact Person Sophia Su
Mobile Number 86-13266221899
Telephone Number 86-0769-82759287



IEC 60587 Automatic Erosion Testing Machine Stainless Steel Tracking

IEC 60587 Automatic Erosion Testing Machine Stainless Steel Tracking

IEC 60587 Automatic Erosion Testing Machine Stainless Steel Tracking

FAQ

1. How to choose the most suitable Mechanical Equipment ?

Our professional team will give you the best suggestion as long as you tell us what kind of test

you need to do and the required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is

15~20 working days after deposit receipt. If you are in urgent need, we can consider making

special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet

your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help

to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,

UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and

Vietnam, Iran, Brazil...and so on.
6. How about your warranty?
Generally, our warranty is two year. Within the warranty period,

we can offer technique support and part parts change, necessarily, our engineers may go to your

place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered

many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing

and debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
